I forgot I bought 3 avocados, they're overripe, I can't eat them, I'm sad, and now I'm learning CUDA

Concept of CUDA

CPU and GPU have separate memories. The workflow for doing accelerated device computation is:

1. Allocate memory on GPU (cudaMalloc)
2. Copy input data from CPU → GPU (cudaMemcpy HostToDevice)
3. Launch kernel (GPU does the work)
4. Copy results from GPU → CPU (cudaMemcpy DeviceToHost)
5. Free GPU memory (cudaFree)

---

We call a kernel function the function that runs on a GPU. In our compiler team, we simply call this Device function. Apparently, some founding engineers decided this because it's the "central" or "core" of the computation.

We should truly never give engineers decision-making on important things, because its definition collides with 872316487 other meanings.

We define this kernel function and add this __global__ keyword to mark a function as a device function.

__global__ void vecAdd(int *a, int *b, int *c, int n) {
    int i = blockIdx.x * blockDim.x + threadIdx.x;
    if (i < n) {
        c[i] = a[i] + b[i];
    }
}

And yes, as you see, kernels don't have return values, they use output as parameters instead.

---

Now before we jump into the kernels, calling convention, it's better for us to know the limitations of CUDA.

Hard Limits (All CUDA GPUs)

Resource	Max Value
Threads per block	1024
Block dimensions	$x = 1024, y = 1024, z= 64$
Total Size	$xyz \leq 1024$
Grid dimensions	$x = 2^{31} - 1, y = z = 2^{16} - 1$

Let's define it to be something like

struct Dim3 {
	int x, y, z;
};

Dim3 threadIdx; // Thread index within block
Dim3 blockDim; // Block size, threads per block
// its true that:
// - (0 <= threadIdx.x < blockDim.x)
// - (0 <= threadIdx.y < blockDim.y)
// - (0 <= threadIdx.z < blockDim.z)
Dim3 blockIdx; // Block index within the grid
Dim3 gridDim; // Grid size (blocks per grid)
// its true that:
// - (0 <= blockIdx.x < gridDim.x)
// - (0 <= blockIdx.y < gridDim.y)
// - (0 <= blockIdx.z < gridDim.z)
int warpSize;

Now if you think about it, the maximum threads per launch is actually $1024 \times (2^{31} -1) \times (2^{16} - 1)^2$. But this is absurd. Actually, threads are virtual. Now, introduce the concept of SM (Streaming Multiprocessors).

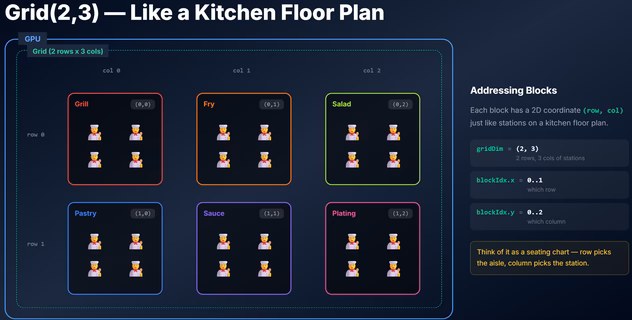

🏢 Kitchen = GPU
│
├── 🔥 Stove (SM) — physical hardware, LIMITED (e.g. 68)
│   │
│   ├── 📦 Station (Block) — scheduled onto stoves
│   │   └── 🍳🍳🍳 Chefs (Threads)
│   │
│   ├── 📦 Station (Block) — multiple stations share one stove
│   │   └── 🍳🍳🍳 Chefs (Threads)
│   │
│   └── 🧊 Counter space = Shared Memory (split between stations)
│
├── 🔥 Stove (SM)
│   ├── 📦 Station...
│   └── 📦 Station...
│
└── 🔥 Stove (SM)
    └── ...

// RTX 3080: 68 SMs × 16 max blocks per SM = 1088 simultaneous blocks

kernel<<<1000000, 256>>>();  // 1 million blocks launched
                              // only 1088 run at once
                              // remaining 998,912 wait in queue

Architecture	CC	Max Threads per SM	Max Blocks per SM	Max Warps per SM	Register File per SM	Max Registers per Thread	Shared Memory per SM	Max Shared Memory per Block
Ada Lovelace (RTX 40xx)	8.9	1,536	24	48	65,536 (64K) 32-bit	255	100 KB	99 KB
Ampere (RTX 30xx consumer / RTX Axx)	8.6	1,536	16	48	65,536	255	100 KB	99 KB
Ampere (A100 / A40 etc.)	8.0	2,048	32	64	65,536	255	164 KB	163 KB
Hopper (H100 / H200)	9.0	2,048	32	64	65,536	255	228 KB	227 KB
Blackwell (datacenter B100/B200/GB200)	10.0	2,048	32	64	65,536	255	228 KB	227 KB
Blackwell (consumer RTX 50xx series)	12.0	1,536	32	48	65,536	255	128 KB	99 KB

CUDA calculates “how many blocks fit on ONE SM?” It takes the minimum of these limits:

Limiting factor	How it’s calculated (Blackwell example)	Typical limit
Hardware max blocks	24 (consumer) or 32 (datacenter)	24 or 32
Shared memory	floor( sharedMemPerSM / (sharedPerBlock + 1 KB overhead) )	e.g. 228 KB / 10 KB = 22 blocks
Registers	floor( 65,536 registers / registers per block )	varies
Threads	floor( 1536 or 2048 threads / threads per block )	varies

The shared memory you requested is often the one that decides the final number.

Keyword	Meaning
__global__	Callable from host, runs on device (the kernel)
__device__	Callable from device only, runs on device (helper function)
__host__	Callable from host, runs on host (normal CPU function)

Keyword	Scope	Lifetime	Speed
__shared__	Block	Block	Fast
__constant__	All threads (read-only)	Application	Fast (cached)
__device__	All threads (global)	Application	Slow
(no qualifier)	Thread (register/local)	Thread	Fastest

Keyword/Function	What It Does
__syncthreads()	Barrier — all threads in block must reach this point
__syncwarp(mask)	Barrier for threads within a warp
__threadfence()	Ensures memory writes visible to all threads (device)
__threadfence_block()	Same but within block only
__threadfence_system()	Visible to host + all devices

__constant__ int TABLE[64];                  // global scope

__device__ int helper(int x) { return x*2; } // device-only function

__global__ void kernel(int *d_data, int n) { // THE kernel
    __shared__ float cache[256];              // block-local fast mem

    int i = blockIdx.x * blockDim.x + threadIdx.x;  // built-ins

    cache[threadIdx.x] = d_data[i];
    __syncthreads();                          // sync

    atomicAdd(&d_data[0], 1);                // atomic

    unsigned mask = __ballot_sync(0xFFFFFFFF, i < n); // warp vote
}
